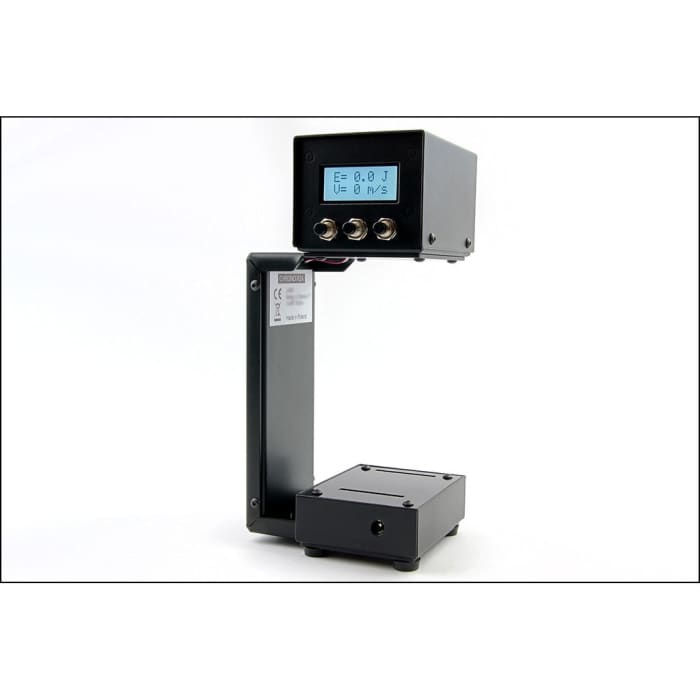

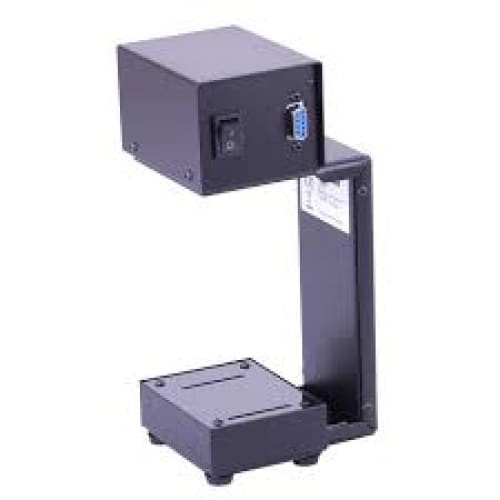

R2A Chronograph

R2A Chronograph

Application

The measurements: air rifles, firearms and archery.
System units: metric and imperial.

Parameters

• velocity: 12 – 2000 m/s ( 40 - 6500 f/s )
• measurement error: <= 1% @ 1000m/s
• current consumption: 100 mA
• power supply: 2AA (alkaline or rechargable battery)
• dimensions R2A ( h x w x d ) 210x105x100 mm
• weight R2A: 0.995 kg


Functions

• velocity V [m/s], [ f/s ]
• kinetic energy E [J], E [Ft/Lbs]
• shooting counter
• power factor PF ( IPSC )
• average kinetic energy
• average velocity Vavg
• minimum velocity Vmin
• maximum velocity Vmax
• absolute velocity dV=|Vmax-Vmin|
• standard deviation SV
• rate of fire RoF
• bullet weight 0.01 - 50.00 g ( 600 gr )
• calibration ( settable distance between sensors )
• memory 250 measurements for velocities
• data transmision to computer

Supplied with USB Cable for data transmission.
